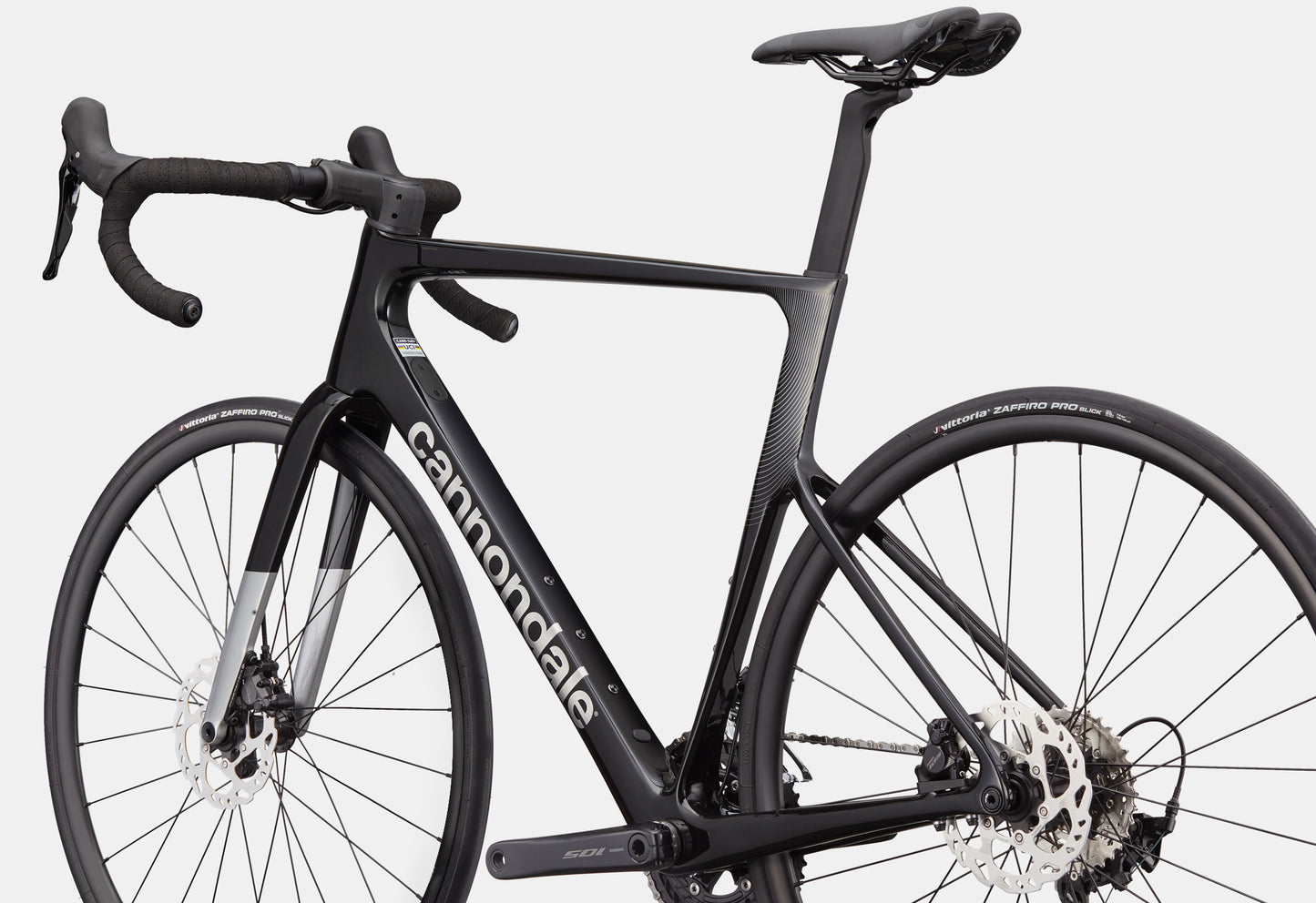

Road Racer – Cannondale SuperSix EVO 4

The all-new SuperSix EVO shatters expectations. So light, so fast and so aerodynamic it defies logic. This is a machine built to make you faster everywhere. Speed ​​has evolved.

Where it thrives
Competition, red zone, lead, podium

What it is built for
Road races, personal best (PR), mountain race (KOM), victories

Highlights
• Lightweight, low-drag SuperSix EVO carbon fiber frameset – the perfect combination of speed, handling and comfort
• Shimano 105 12-speed mechanical groupset – Shimano's all-new premium road assembly

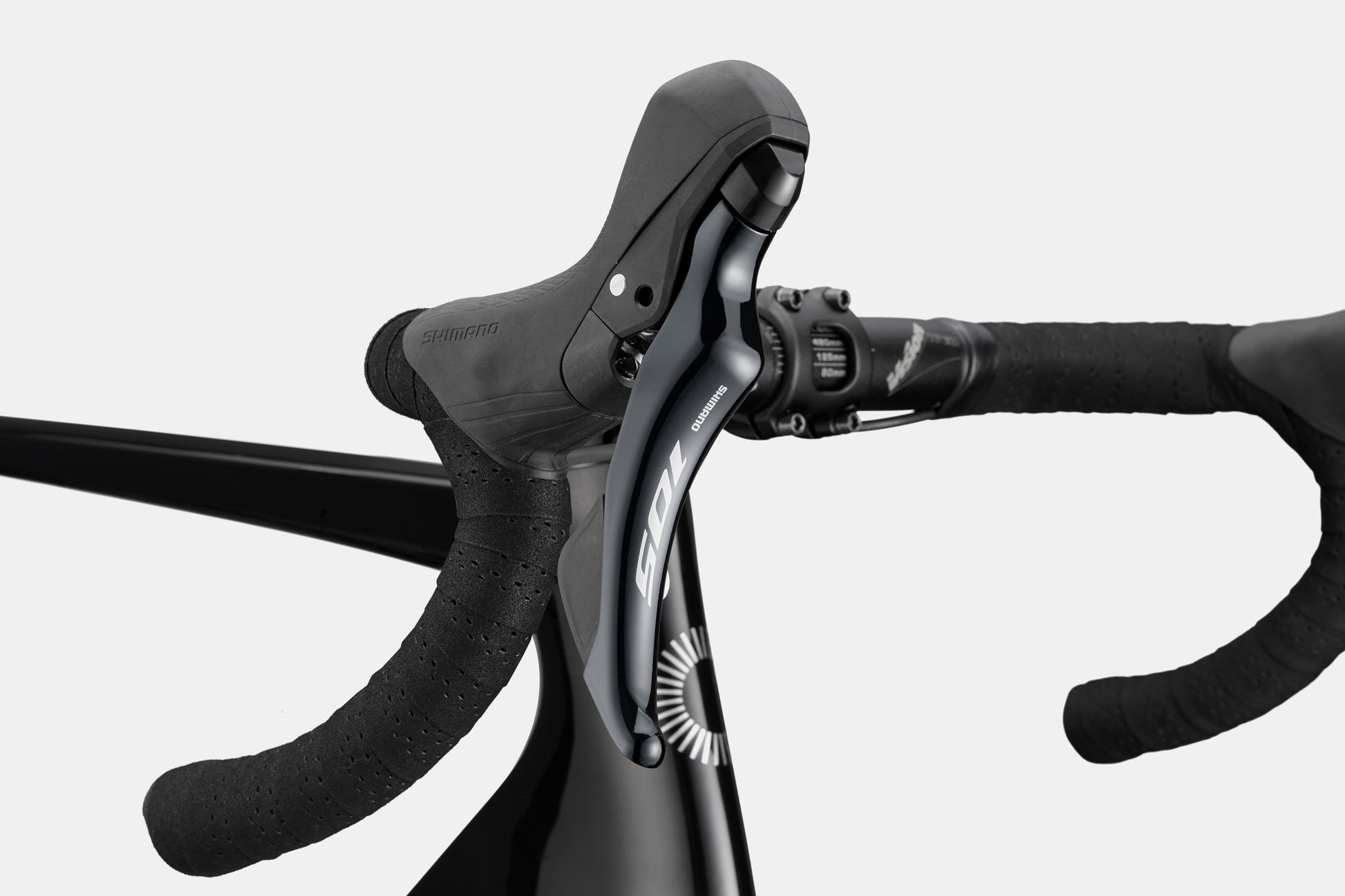

• Vision Trimax Compact handlebar and Cannondale C1 Conceal stem – ergonomic cockpit with hidden cables

• Platform

  SuperSix EVO
• Model Name

  SuperSix EVO 4
• Model Code

  C11602U

Frameset

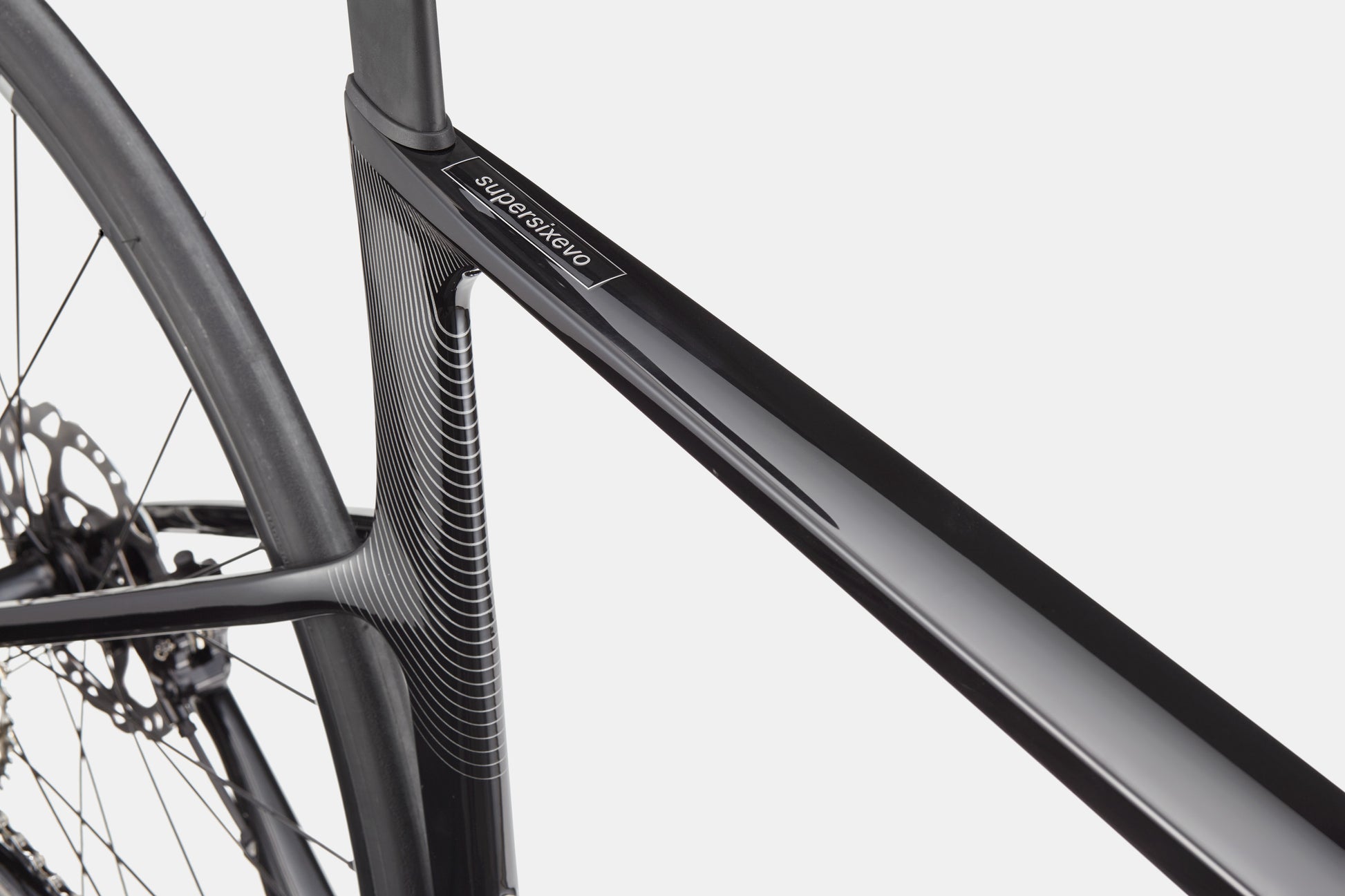

• Frame

  SuperSix EVO Carbon, integrated cable routing w/ Switchplate, 12x142 Syntace thru-axle, BSA 68mm threaded BB, flat mount disc, integrated seat binder, SmartSense compatible
• Fork

  SuperSix EVO Carbon, integrated crown race, 12x100mm Syntace thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/4" Delta steerer, 55mm offset (44-54cm), 45mm offset (56-61cm)
• Headsets

  Integrated, 1-1/8" - 1-1/4"

Drivetrain

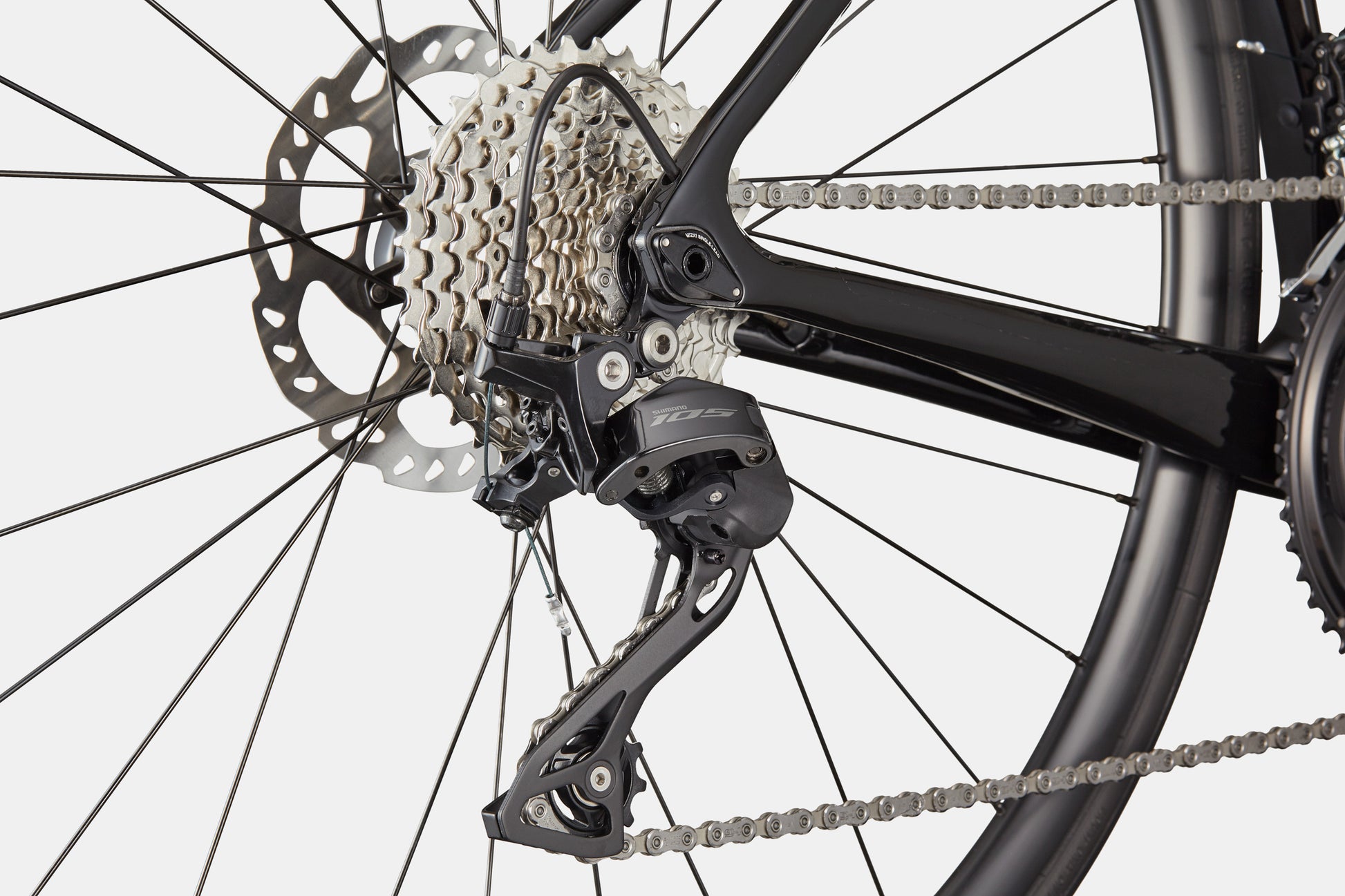

• Rear Derailleur

  Shimano 105 7100, 12-speed
• Front Derailleur

  Shimano 105 7100, braze-on
• Shifters

  Shimano 105 7100, 12-speed
• Chain

  Shimano 105 7100, 12-speed

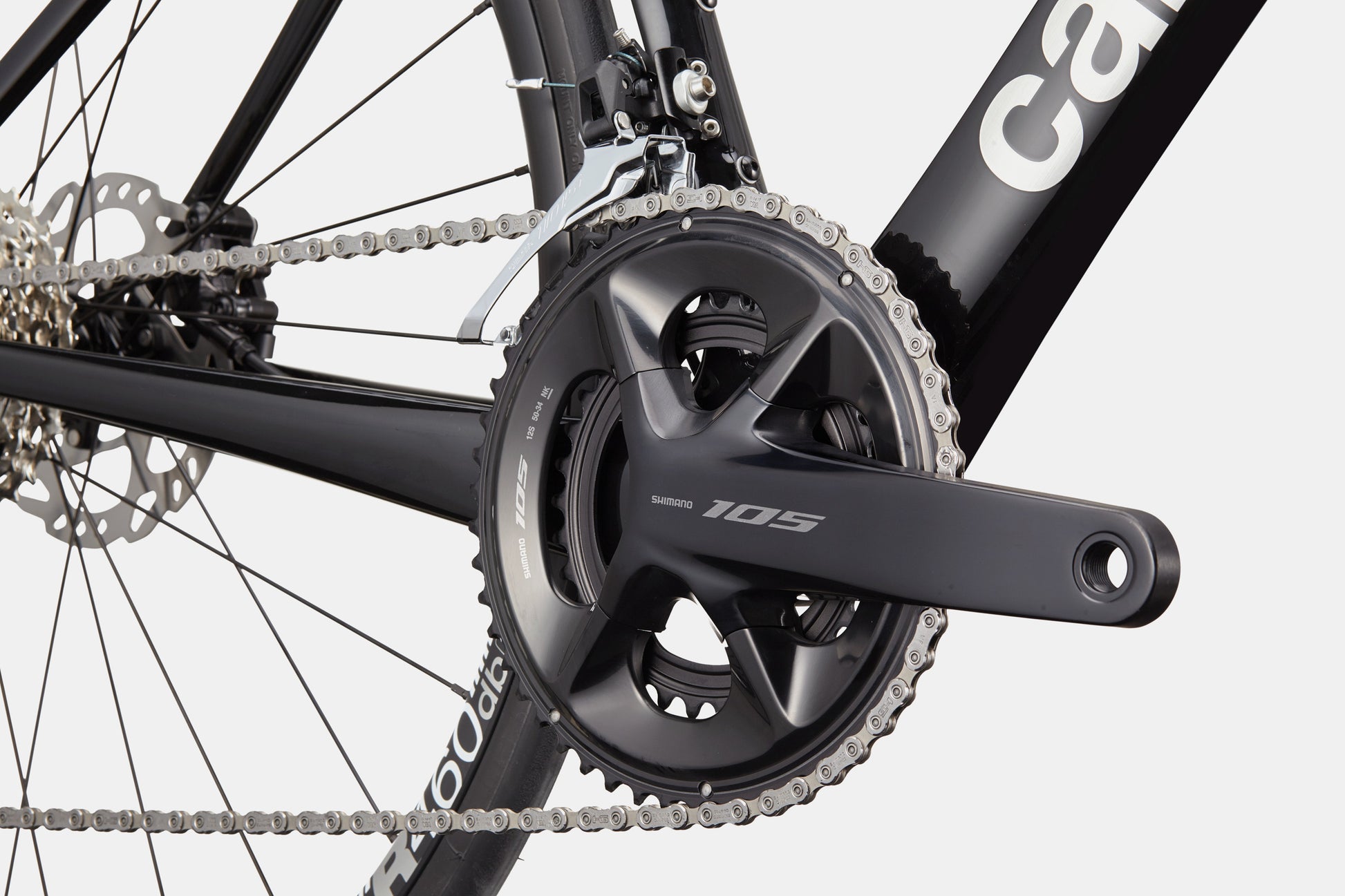

• Crank

  Shimano 105 7100, 12-speed, 50/34
• Rear Cogs

  Shimano 105 R7100, 11-36, 12-speed
• Bottom Bracket

  Shimano BB-RS500, BSA

Brakes

• Brakes

  Shimano 105 7170 hydraulic disc, 160/160 RT70 rotors
• Brake Levers

  Shimano 105 7100 hydraulic disc

Wheels

• Rhymes

  Maddux 3.0, 28h
• Spokes

  Stainless Steel, 14g
• Tire Size

  25
• Wheel Size

  700
• Hubs

  (F) Formula CL-712, 12x100mm center cap / (R) Formula RXC-400, 12x142mm center cap
• Tires

  Vittoria Zaffiro Pro Slick, 700x25c

Components

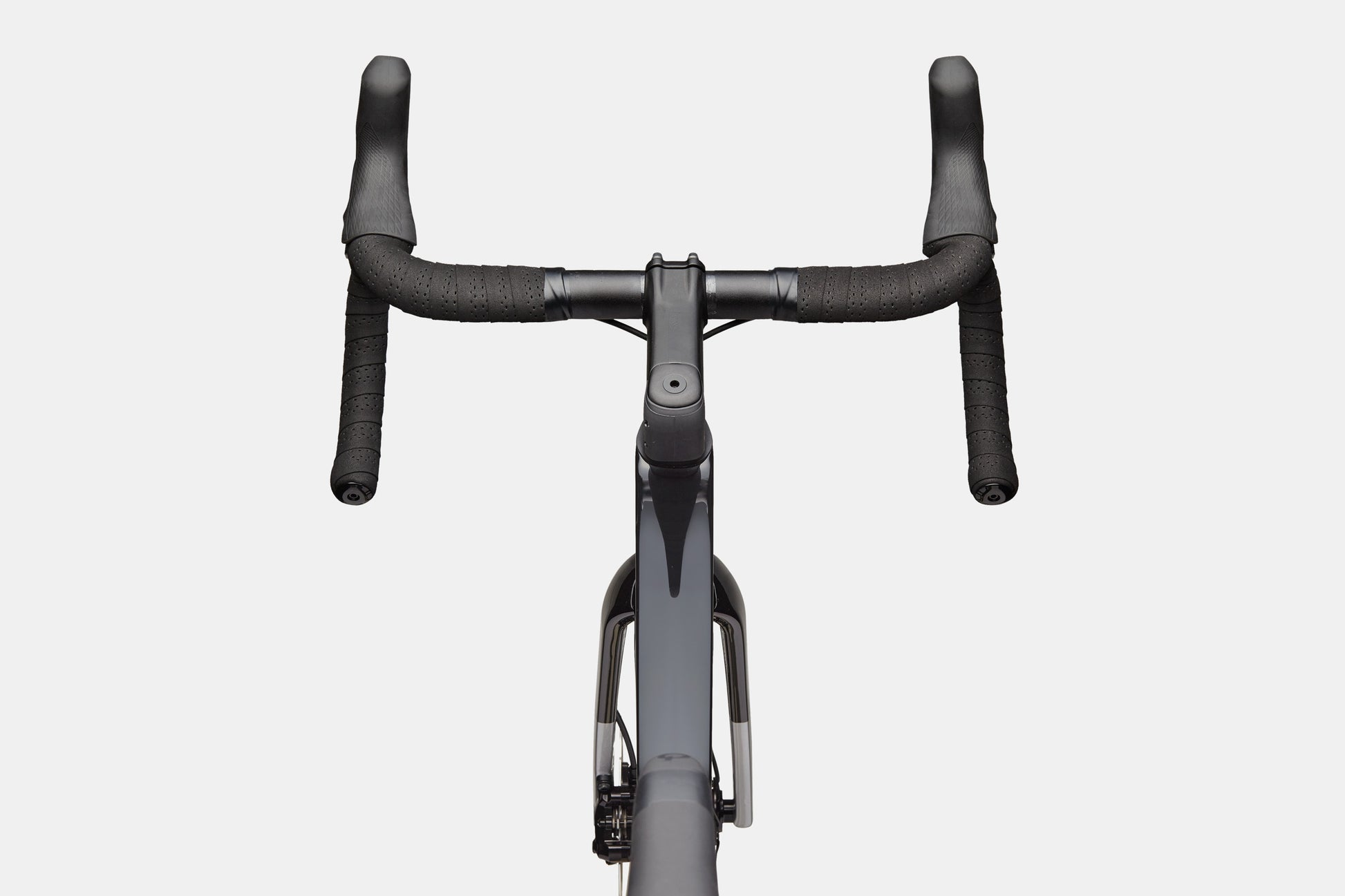

• Handlebar

  Vision Trimax Compact
• Stem

  Cannondale C1 Conceal, Alloy, 31.8, -6°
• Grips

  Cannondale Bar Tape, 3.5mm
• Saddle

  Prologo Nago RS STN, Stainless Steel Rails
• Seatpost

  Cannondale C1 Aero 40 Carbon, 0mm offset (44-48cm), 20mm offset (51-61cm)

Connectivity

• Wheel Sensor

  Cannondale Wheel Sensor
